| Year | 2021년 | ||
| Type | 5AXIS MCT | ||

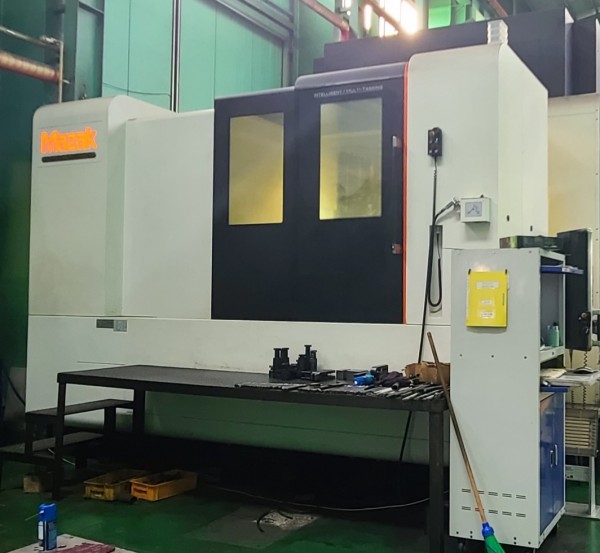

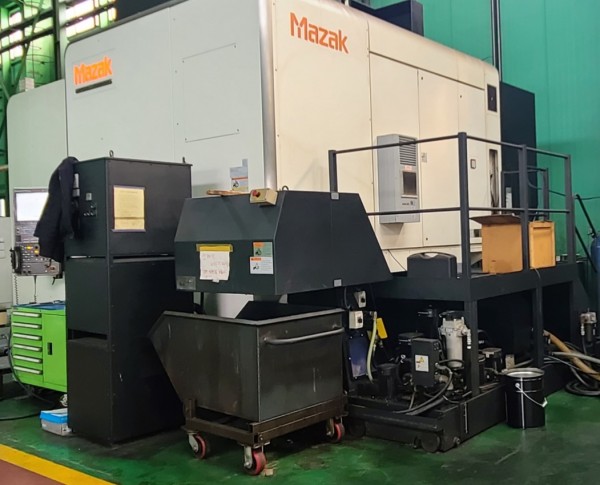

| Performance | 99. USED MAZAK VORTEX E-1060V-8S(2015) SPEC & PHOTO | ||
첨부파일
-
99. USED MAZAK VORTEX E-1060V-8S2015 SPEC PHOTO.pdf
(823.1K)
21회 다운로드
DATE : 2021-08-04 23:43:17
본문
Quote/Purchase/Inquiry support
ssak3pibak@gmail.com
whats app
| MODEL | VORTEX e-1060V/8S |
| MAX. WORKPIECE DIMENSIONS | §1,500mm X 1,450mm |
| MAX. LOAD CAPA.(INCLUDED PALLET) | 2,700 KG |
| X-AXIS TRAVEL/ Y-AXIS TRAVEL | 1,695mm / 1,060mm |
| Z-AXIS TRAVEL | 1,345mm |
| RAPID TRAVERS RATE | 42,000 mm/min |
| B-AXIS | 150° (-30°~+120°), 0.0001° |
| C-AXIS | 360°, 0.0001° |
| MILLING SPINDEL (30 MIN. RATING) | 10,000 rpm, 37KW |
| MAX TOOL DIA. X LENGTH X WEIGHT | §260mm X 500mm X 30KG |
| TOOL SHANK, STORAGE CAPA. | MAS BT-50, 80 TOOLS |
| PRODUCED DATE | 2015 |
