| Year | 2023년 | ||
| Type | CNC VERTICVAL LATHE | ||
| Performance | 110. USED HANKOOK VTC-160E CNC VERTICVAL LATHE (2008) SPEC&PHOTO | ||
첨부파일
-
110. USED HANKOOK VTC-160E CNC VERTICVAL LATHE 2008 SPECPHOTO.pdf
(758.2K)
19회 다운로드
DATE : 2022-02-05 14:43:43
본문
Quote/Purchase/Inquiry support
ssak3pibak@gmail.com
whats app

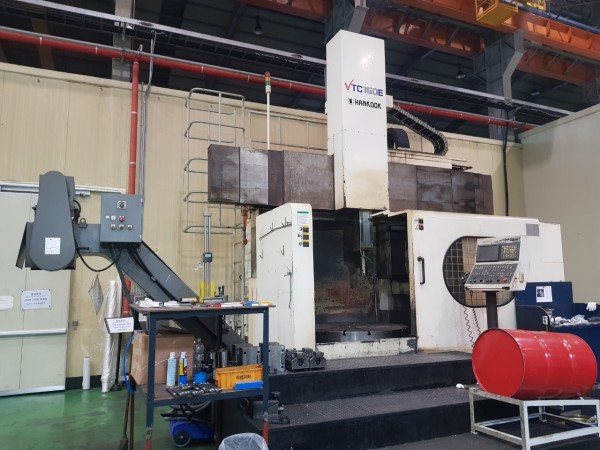

| MODEL | VTC-160E | |
| MACHINE TYPE | CNC VERTICAL LATHE | |
| DATE OF MFD | 2008. 06 | |

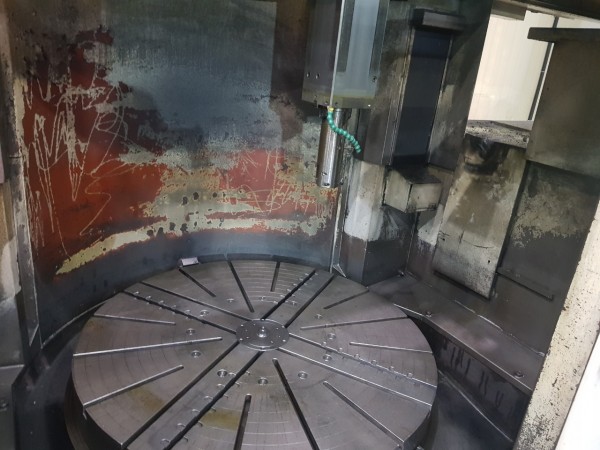

| TABLE | TABLE DIA. | 1600 mm |
| MAX. SWING DIA. | 2000 mm | |
| MAX. TURNING DIA. | 1700 mm | |
| MAX. TURNING HEIGHT | 1600 mm | |
| MAX. WEIGHT OF WORKPIECE | 7000 kg | |
| TABLE DRIVE MOTOR | AC 45/55 kw(60.3/73.7HP) | |
| SPEED RANGE -LOW | 5-60 rpm | |
| SPEED RANGE -HIGH | 5-240 rpm | |
| CROSS RAIL | HEIGHT UNDER CROSSRAIL MAX. | 2000 mm |
| HEIGHT UNDER CROSSRAIL MIN. | 1000 mm | |
| POSITIONING STEP | 200 mm X 6 STEP | |
| RAM | VERTICAL TRAVEL | 1000 mm |
| HORIZONTAL TRAVEL | ||
| TO RIGHT TABLE CENTER | 980 mm | |
| TO LEFT TABLE CENTER | 100 mm | |
| TOOL HOLDER SHANK SIZE | BT50 | |
| RAM SIZE (SQUARE) | 210*210 mm | |
| FEED RATE (X&Z) | 1-3000 mm/min | |
| RAPID TRAVERSE (X&Z) | 10000 mm/min | |
| ELEVATING SPEED OF CROSSRAIL | 300 mm/min | |
| OTHERS | OVERALL DIMENSION MAX. HEIGHT | 5755 mm |
| NET WEIGHT | 2000 kg | |
| ACCESSORIES | ATC | 12 TOOLS |
