Maker

NILES BERLIN

Model

NILES ZT30 F

Year:

1998

Control:

Schleicher Promodul-U

Gear width:

1200 mm

Max. module:

34

Min. module:

2

No. of teeth:

5 - 1000

Freight basis:

EXW

Pressure angle:

14 / 31 °

Boring diameter:

600/710 mm

Max. helix angle:

+/- 35 °

Workpiece weight:

20.000 kg

Stroke length max.:

1250 mm

Double strokes/min.:

80 - 350 Stück

Grinding wheel size:

270/350 x 127 x 40-63 mm

Max. wheel diameter:

3000 mm

Tip circle diameter:

3000 mm

Root circle diameter:

150 mm

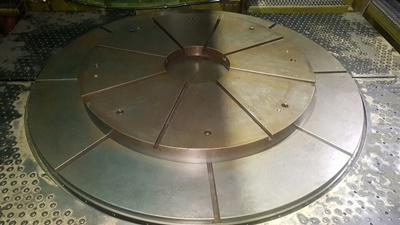

Rotary table diameter:

2000 mm

Total power requirement:

45 kW

Weight of the machine ca.:

85 t

Dimensions of the machine ca.:

9 x 11 x 4,8 m

Electrics - voltage/frequency:

400 / 50 V/Hz
