| 구분 | 2023년 | ||
| 타입 | VERTICAL machining CENTER | ||

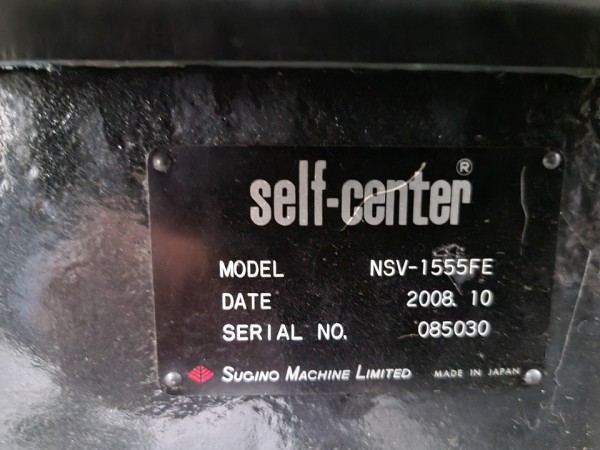

| 실적 | 71. USED SUGINO SELF CENTER NSV-1555FE VERTICAL CENTER SPEC & PHOTO | ||
첨부파일
-
71. USED SUGINO SELF CENTER NSV-1555FE VERTICAL CENTER SPEC PHOTO.pdf
(730.7K)
51회 다운로드
DATE : 2020-11-09 15:07:38
-
20201106 NSV-1555FE VIDEO CLIP.mp4
(14.6M)
51회 다운로드
DATE : 2020-11-09 15:10:18
-
KakaoTalk_20201106_140539220.mp4
(14.6M)
50회 다운로드
DATE : 2020-11-09 15:07:38
본문
Quote/Purchase/Inquiry support
ssak3pibak@gmail.com
whats app
|
Stroke X-axis |
500 mm |
|
Stroke Y-axis |
370 mm |
|
Stroke Z-axis |
300 mm |
|

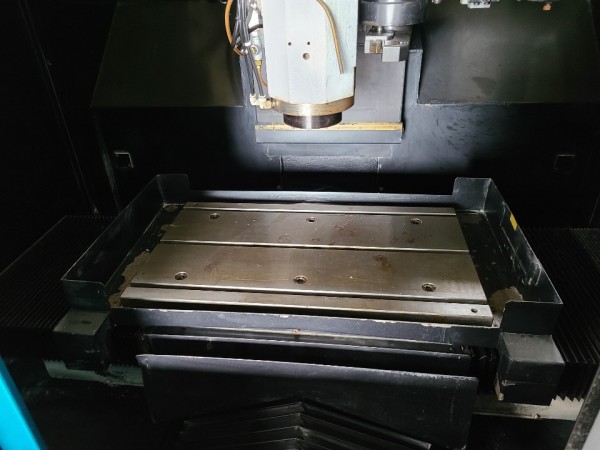

Working Area |
600 x 400 mm |
|
Allowable Load (kg) |
350 |
|
Distance From Table Surface to Spindle Nose |
150 ~ 450 mm |
|
Spindle Standard |
12000 min-1 at 2.2 kW |
|
High Speed Spindle |
15000 min-1 at 2.2 kW |
|
Spindle Coolant Through |
12000 min-1 at 3.7 kW |
|
Spindle High Torque |
12000 min-1 at 3.7 kW |
|
Rapid Feed Rate (X,Y,Z) |
24 m/min |
|
Max. Cutting Feed Rate |
10 m/min |
|
Min. Programmable Unit (mm) |
0.001 |
|
Positioning |
0.004 mm |
|
Repeatability (mm) |
±0.001 |
|

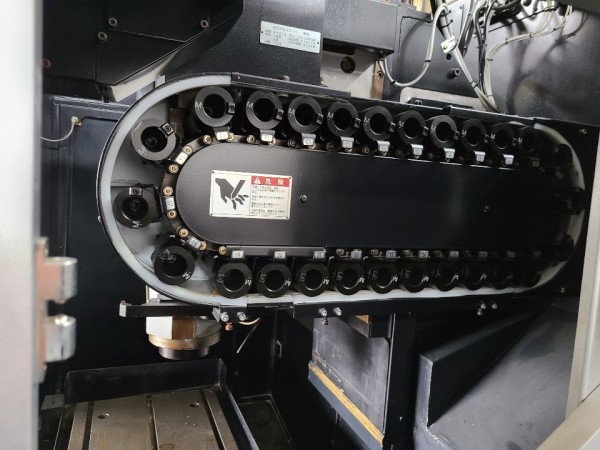

Number of Tools |
26 |
|
ATC Tool to Tool |
1 sec |
|
ATC Tool Shank |
BT30 (Pull Stud MAS P30T-2) |
|
Max. ATC Tool Dimension |
Ø60 x 250 mm |
|
Max. ATC Tool Weight |
3.5 kg |
|
ATC Tool Selection |
Memory Random |
|
Machine Width |
1570 mm |
|
Machine Length |
2530 mm |
|
Machine Height |
2370 mm |
|
Machine Weight |
2800 kg |
|
Power Supply (AC) |
200 V |
|
Voltage Tolerance |
±10 % |
|
Frequency |
50/60 Hz |
|
Phase |
3 |
|
Max. Power Capacity |
18 kVA |
